with Innovative 3D Sensor Technology

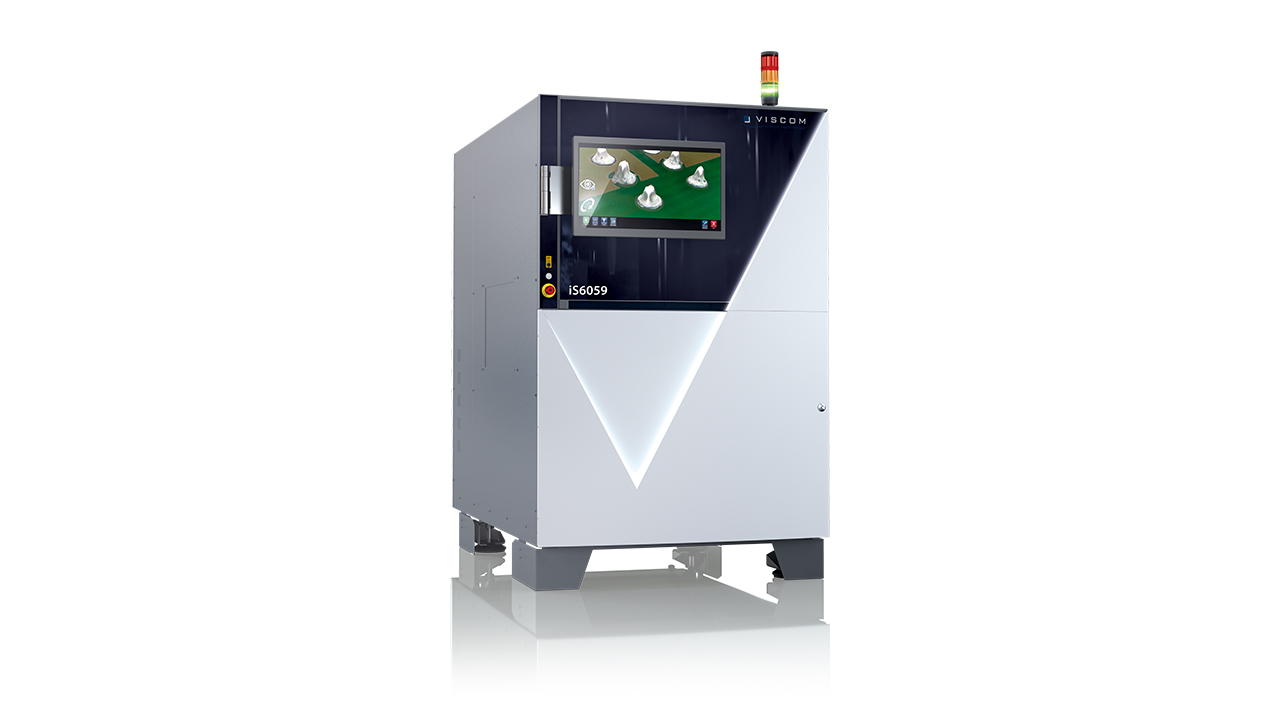

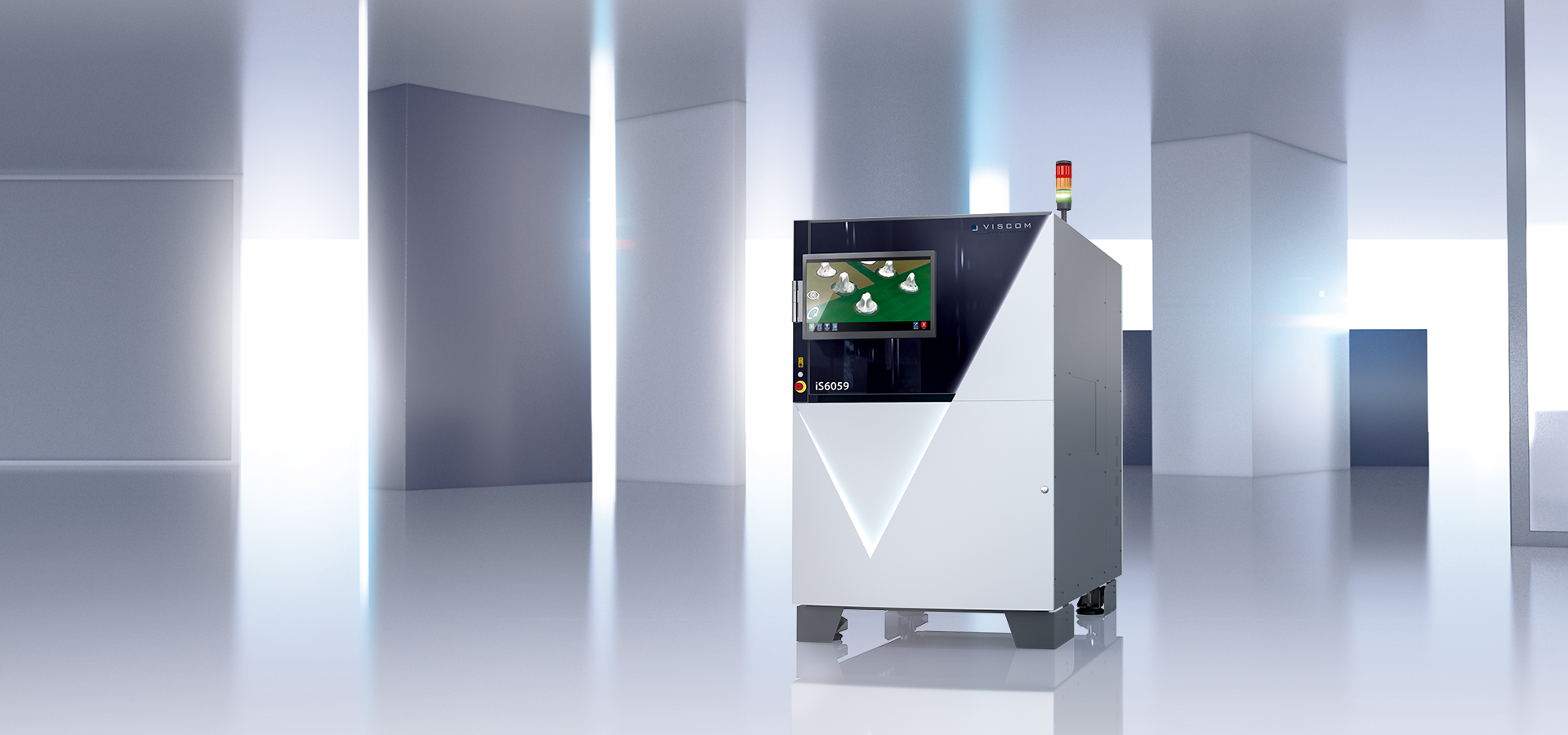

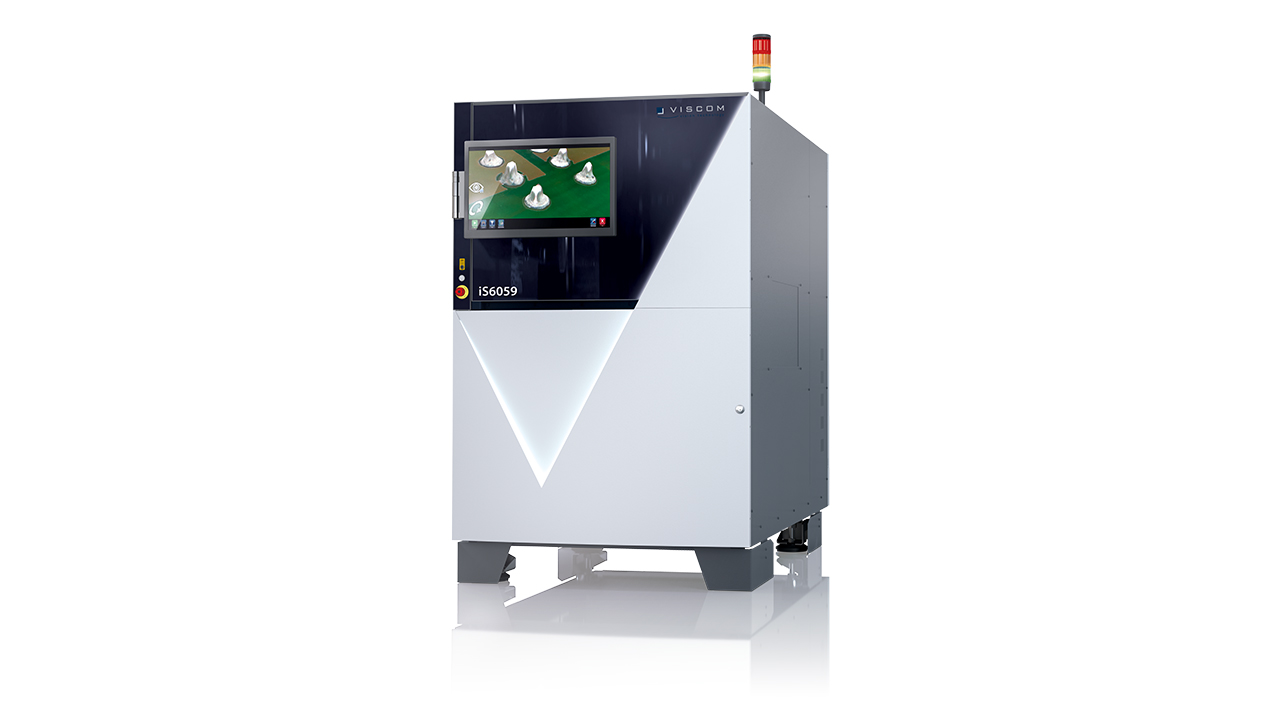

iS6059 THT Inspection – unmatched 3D AOI for underside quality control
With innovative 3D camera technology, the iS6059 THT Inspection 3D AOI system inspects THT components, THT solder joints, press-fit and SMD components shadow-free and at high precision on the underside of the printed circuit board. PCBAs as well as inspection objects on workpiece carriers are inspected at high speed in 2D, 2½D and 3D. As a result, the iS6059 THT Inspection stands for maximum defect detection and highest throughput. Different lighting can be used flexibly and so provide inspection results in excellent quality.
Inspection scope
- Maximum performance: Featuring a powerful 3D XM sensor system concept for performing quality inspections from below
- First-rate inspection quality: Shadow-free inspection thanks to 8 angled cameras
- System flexibility: reliable handling of a wide range of different inspection objects
- Optimum process design due to extended handling possibilities such as long board option
- Minimal time and training requirements thanks to Viscom standard software
- Flexible integration into existing productions
- Improved ergonomic design
- Global libraries, global calibration: Transferability to all systems
- Outstanding inspection program optimization thanks to flexible single and multiline verification solutions
- Simple operation and inspection program generation with EasyPro/vVision
- High-performance OCR software
- Connection via horizontal interfaces along the production line
- Viscom Quality Uplink: intelligent networking of Viscom inspection systems along the production line
- Production line control and product traceability
- Flexible integration of additional production-relevant modules: buffers, label printers, etc.
- Connection to vertical interfaces for communication with MES systems
- Statistical process control with Viscom SPC/vSPC
- Offline programming stations for increased efficiency
- Optional connection to the digital multi-purpose platform vConnect
Components: THT, press-fit and SMD |

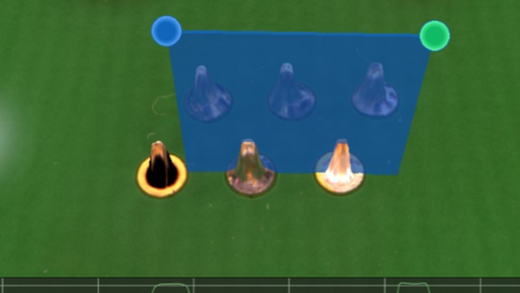

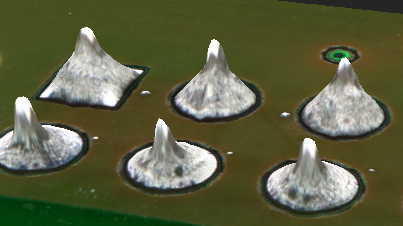

Solder joints: 3D inspection of PCB bottom sides after wave soldering or selective soldering |
Defects/characteristics: |
SMD: Presence, XY position, rotation, component height, polarity, missing solder, soldering defects, lifted heads/tombstoning, bridging |

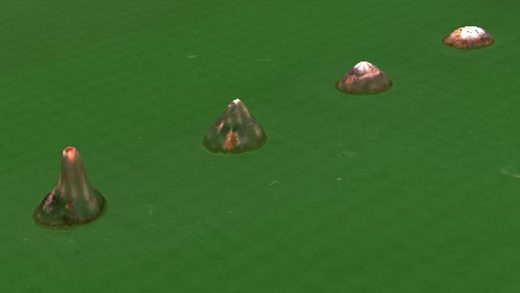

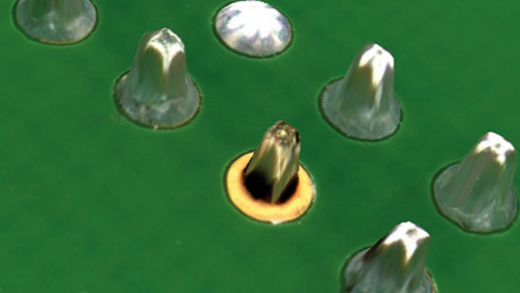

THT: Presence, XY position, missing solder, soldering defects, bridging, pin height, non-wetting on pins, non-wetting on pads |
Optional: Free area analysis, wobble circle error, color ring analysis, OCR, blow holes in the solder joint, solder ball/solder sputter |
DIMENSIONS | |
System housing: | 1100 mm x 1756 mm x 1753 mm (W x D x H) |
CAMERA TECHNOLOGY | XMu-II |
3D sensor technology | |
Z-resolution: | 0.5 µm |
Z-range: | Up to 30 mm (1.2") |
Angled view cameras | |
Number of megapixel cameras | 8 |
Orthogonal camera | |
Resolution: | 13 µm/Pixel |
Field of view: | 50 mm x 50 mm (2" x 2") |
INSPECTION SPEED | Up to 65 cm²/s |
HANDLING | |
PCB dimensions: | 508 mm x 560 mm (20" x 22"); long-board option available |
SOFTWARE | |
User interface: | Viscom vVision/SI EasyPro |
Statistical process control: | Viscom vSPC/SPC, open interface (optional) |
Verification station: | Viscom vVerify/HARAN |
Remote diagnosis: | Viscom SRC (optional) |
Programming station: | Viscom PST34 (optional) |
ADVANTAGES AT A GLANCE
- Maximum defect detection
- Flexible handling options
- Unmatched 3D camera technology
- Different illuminations
- Complete process tracking
